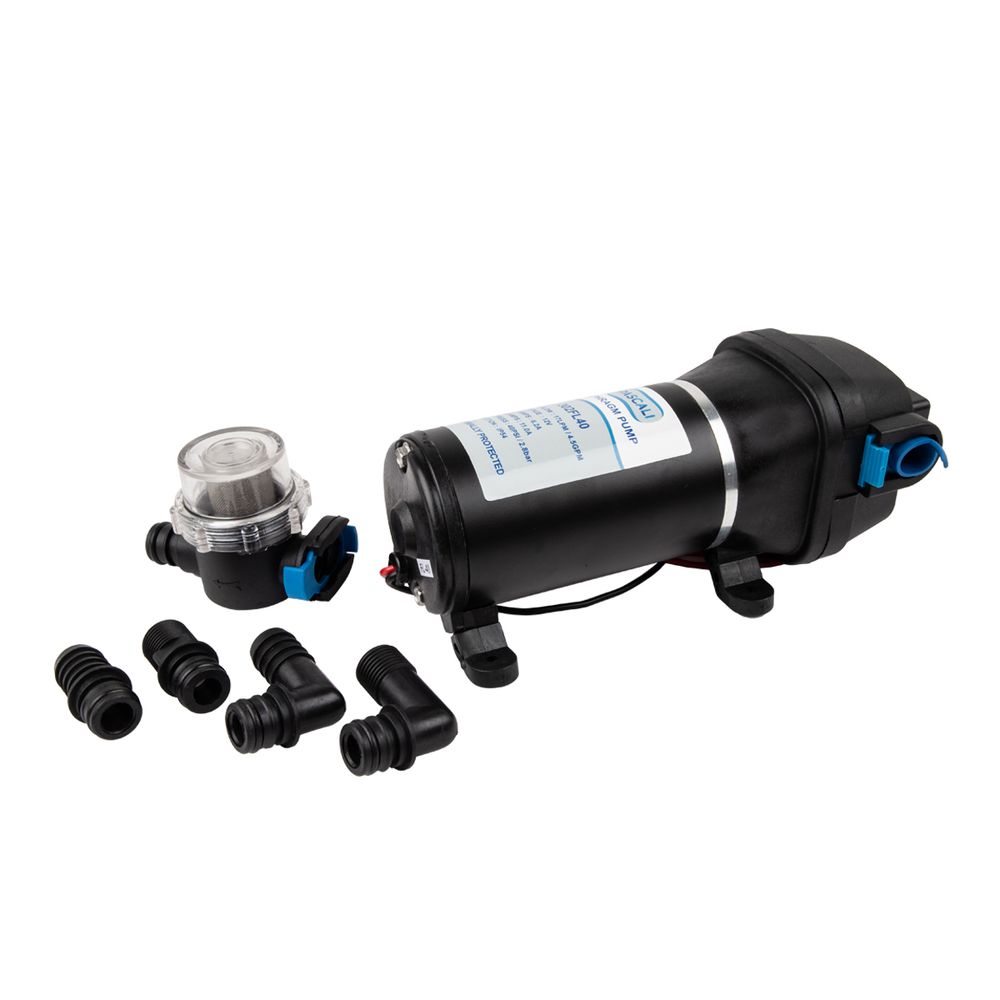

PASCALI Diaphragm Pump Dc12v Ip54 3.2bar

The Pascali FL40 is a diaphragm pump with an IP54 rating, offering limited dust protection and splash resistance, making it appropriate for indoor settings with occasional moisture, like bathrooms and covered patios, though it's not entirely waterproof. It features a motor with a pressure regulating switch rated for 20Amps, using 2mm wire suitable for DC current between 6Amps and 25Amps. The color-coded wires indicate positive (red) and negative (black). Changing the polarity of the DC motor reverses its rotation but may increase brush sparking, wear, or decrease efficiency in certain motors. The pump is self-priming and intended for intermittent use, equipped with a built-in pressure switch that activates and deactivates the pump based on faucet usage. It can be installed above the water tank when a non-return valve is employed, and it withstands dry running for extended periods without damage. Notably, it includes a thermal protector and has a maximum liquid temperature of 60 degrees Celsius, with a pressure limit of 40 Psi (2.8 Bar), operating on various voltages including 12V, 24V DC, 115V, and 220V AC, capable of an open flow rate of 4.47 GPM (17 liters per minute) at 9.2A, all while maintaining its IP54 protection.
